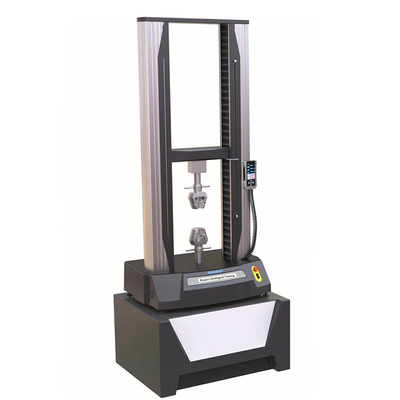

Factory Wholesale Heaven and Earth Mini Universal Material Temperature 500KG Tensile Testing Machine

1 Set
MOQ
$5,514.00(1 - 4 sets) $5,114.00(>=5 sets)
Price
Factory Wholesale Heaven and Earth Mini Universal Material Temperature 500KG Tensile Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM
Model Number: MT-BN5000 Computer Servo
Power: Electronic
Machine Grade: 0.5/1
Force Testing Range: 0.4%`100%FS/0.2%`100%FS
Power Supply: 220V 500w(or Customized)
Weight: 150kg
Dimension: 490*530*1590mm
Accuracy: 0.5%FS
Capacity: 500KG
Basic Infomation
Model Number: MT-BN5000 Computer servo
Payment & Shipping Terms
Packaging Details: I set security packed by wrapping film, then put it into a strong plywood box.
Supply Ability: 5000 Set/Sets per Year
Product Description
MECHTERRA universal testing machine model MT-A,B series are built for compression, tension, flexure, and shear strength testing on assemblies and materials. The sturdy design that includes quality materials and components guarantees that the company’s reputation for excellent system performance, longevity, and ease of use is upheld. A range of loadcells is available in varying capacities that offer precise applied load measurements from the smallest test specimen to ones that go to maximum machine capacity. Test machines become complete, robust test systems with the incorporation of grips to hold the specimen, strain measurement instrumentation and IDEAL TEST Analysis software.

Features and Benefits 1. Model MT-A - Suitable for compression, tension, flexure, shear and other tests to a maximum force of 5 kN/1000 lbf 2. Single column design allows economical, compact, and easy testing 3. Meets or exceeds the requirements of international and national standard for materials testing systems 4. Four full-length T slots integrated into the machine column to allow accessories to be firmly mounted to the test frame 5. Different system interface options are available, from an accustomed tethered handheld interface, a wireless Bluetooth interface panel operating, or virtual machine controller application running on a PC. All interfaces run with IDEAL TEST Analysis software 6. Integral pneumatic distribution ports provide local air supply to pneumatic grips Options and Accessories 7. Test frame can be stretched by up to 455 mm/18” to increase test area size1 8. Grips and fixtures can easily be steadily mounted with a simple locking pin, which also allows simple and quick changes
FORCE MEASUREMENT
Force measurement device type
Strain gage-based load cell
Load cells available
5N, 10N, 25N, 50N, 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 20kN
Accuracy
≤+/-0.5% of applied force across load cell force range
Range
0.5-100%
Calibration standard
+/- 0.5% per ISO 7500-1 ASTM E4
POSITION CONTROL
Test speed
0.001-1000 mm/min
Stroke Resolution
0.001mm
Accuracy
+/- 0.3%
Return speed post test
0.001-1500 mm/min
Crosshead positioning speed
0.001-1000 mm/min
Return to zero function
YES
POWER REQUIREMENTS
Supply voltage options
220V or specified by user
Frequency
50/60 HZ
Power
500w +/- 10%
ATMOSPHERIC REQUIREMENTS
Operating temperature
10-40 °C
Operating humidity
10-90% non-condensing
Storage temperature
10-69 °C
Storage humidity
10-90% non-condensing
FRAME SPECIFICATIONS
Tension compression load capability
Yes
Frame capacity
20kn, 2t, 4000lbf
Proof tested
50% over frame capacity
Floor or table mounting
Table or floor mounting
Test zones
One
Number of columns
One
Column material
Aluminum extrusion
Column finish
Anodized
Column color
Natural
Base material
Mild Steel
Base finish
Pre-primed, top coat powder coat paint
Base color
Black
Crosshead material
Mild Steel solid
Base cover
Pre-primed, ABS recyclable
Maximum cross head travel
300mm or customized up to 755mm
Force protection system
Yes, digital
Displacement protection system
Yes, mechanical and user programmable
Ball screw type
High precision low backlash
Ball screw cover/protection
Yes
Crosshead drive system
DC servo motor
Reference rule to support crosshead positioning
Yes, mm and inches
Products Show
Live shot

Impact testing machine

Patented machine in exhibition.

Plastic testing machine

Patented machine in exhibition.

Delivery product for Export

Strong wood box well packed, delivered by forklift for every moving.

Our Company

Complete inspection.

All finished machine will do complete inspection before packing.

Assembly workshop.

Professional and trained team assembly each machin in the Standard workshop .

Shipped by our own transport team for domestic market.

We have a transporting team with 3 transporting vehicle for domestic market to make sure a fast delivery and an excellent after-sales service.

Standard JIG is special for testing plastic material, customized JIG is for other special testing samples.

We have a R&D team who is professional in design and making customized Jig for every customer, just tell us your request, then you will get exactly what you want.

Ningbo Juheng test machine co., ltd

Expert in physical durability testing equipment
All series testing machine for plastic materials, rubber materials, metal materials, or the physical performance for your product, find us, get more.
Packing & Delivery

Packing Details :  1 set well packed by wrapping film, then put it in a strong plywood box, moved by forklift.

Delivery Details :  Having stock in facotry, delivered in 7-15 days of quantity less than 50 sets.

Security packing for export.

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many
testing machines abroad by sea or by air without damage.

Our Certifications

Our Advantages

Juheng testing machine manufacturer adhere to the brand line, by registering "Mechterra" as transformation from OEM&ODM factory into branding enterprise, our vision is letting each need on physical durability testing equipment accomplished. Found us means got:

1. patented machine with fair cost;

2. technical guidance to your research;

3. rich experience in after-sales service after purchasing;

4. lower price & high quality together.

Fast Delivery
FAQ

Q: Are your company a trading one or a factory ?

A: Factory + trade (integration),10 years focusing on test instruments field,1 years exporting experience.

OEM is also acceptable for us.

Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

Q: What is the order process?

A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

Q: How to install and use the product?

A: The product is shipped with an operatin. (English version)

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Maya: Sales manager

Webchat/Mobile: 0086-15606611188

Tel: 0086-574-86525722

Fax: 0086-574-86525723

Skype: mechterra
