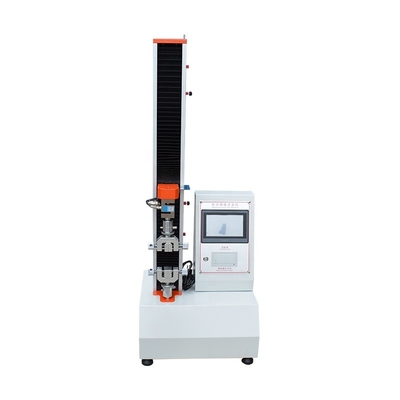

150mm Manufacturer Customizable Supply 200kg High Quality Tensile Testing Machine for Tensile, Compression, Bend Tests

1.0 Sets
MOQ
150mm Manufacturer Customizable Supply 200kg High Quality Tensile Testing Machine for Tensile, Compression, Bend Tests
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM, ODM
Model Number: HT-L-200A
Power: Electronic
Warranty Period: 1year
Product Size (W*D*H): 450*500*1400mm
Capacity Selection: 2-200kg(2-2000N)
Effective Test Width: 150mm Customizable
Effective Stretch Space: 600mm (without Clamp)
Fixture Configuration: A Set Of Stretching Jigs
Test Speed: 10-200mm/min Steplessly Adjustable
Display Method: LCD Display In Chinese, Membrane Touch Keys
Power Supply: 220V/50Hz
Basic Infomation
Model Number: HT-L-200A
Payment & Shipping Terms
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Supply Ability: 60 Set/Sets per Month
Product Description
Products Description
Model
HT-L-200A
dimension (W*D*H)
450×500×1400mm
Capacity selection
0-200kg（0-2000N）
Effective test width
150mm customizable
Effective stretching space
600mm (excluding clamps)
Force measurement accuracy
Within ±0.5% of the indicated value
Test speed range
50-300mm/min stepless speed regulation and 5-speed fixed speed
Standard accessories
A set of common tensile clamps
Breakpoint ratio setting
0～99%, users can set the proper break down time according to different materials
Load cell
Pull pressure sensor
power supply
220V/50Hz

The role of the product:

Tensioning machine is used to all kinds of materials and products in textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries to do stretching, compression, bending, shearing, peeling (90 degrees and 180 degrees), tearing and other tests to determine the quality of the product

Product advantages

1.This machine is a simple tensile testing machine with simple structure and convenient operation. It can be placed on the workbench for testing. 2.The electronic control system is adopted, and the speed regulating motor is controlled by the speed governor to rotate, and then the T-shaped screw is driven to drive the load sensor to rise and fall to complete the tensile or compression test of the sample. 3.The force value is output by the sensor, the display is fed back, and the test displacement is displayed in real time.
Hot Product
Company Information

Huitai Machinery Group Co., Ltd is a professional manufacturer of various testing equipment with a history of 24 years. Products are widely used in paper products, packaging, ink printing, tape, bags, shoes, leather products, environmental protection, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Services

Huitai Equipment Service:


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide
within 3 working days. We can offer operation video and English operation muanual. We can provide video-con. Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free
software upgrades Free information: 1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report) Device Problem Handling: 1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator. 2.Excellent
After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts,even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation handbook. We can provide video-con
Please feel FREE to contact us if you have any needs. If you want to know more
information... Please leave a message below and click " SEND " Thanks for your time and attention!
