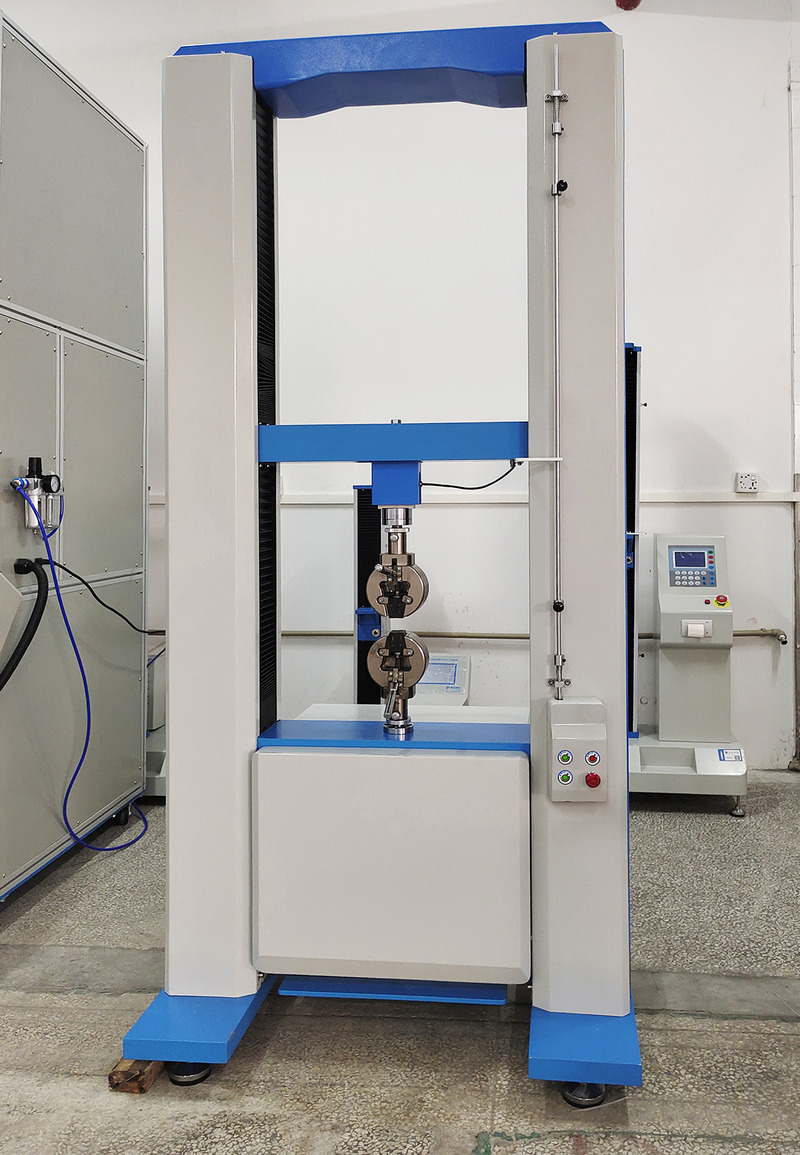

50kn Computer Tensile Testing Machine Control Tensile Strength

1. Application

Universal testing machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection,Mechanics Research and Material Development.steel tensile test

2. Features of universal testing machinesteel tensile test

♣ Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.steel tensile test

♣ Using a single-screen operation; do not need to switch the screen;

♣ With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;steel tensile test

♣ The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;

♣ Choosing translational, comparative mode at the same time to make a number of curve data comparison

♣ With a variety of measurement units, Measure In Imperial & Metric are switchable;

♣ With self-return & auto-correction function;steel tensile test

♣ With automatic magnification function, in order to achieve the most appropriate size of the graphics;

♣ With the user-defined Test methods; with experimental data analysis function;

 steel tensile test

3. Standard of universal testing machine

♠ ASTMD903

♠ GB/T16491

♠ GB/T1040steel tensile test

♠ CNS- 11888

♠ GB/T8808

♠ GB13022

♠ JIS K6854

♠ GB/T 2790/2791/2792

♠ PSTC-7

4. Technical Parameters of universal testing machinesteel tensile test

5. Specification of main engine:  steel tensile test

♥ Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan)+Leeming reduction gears + synchronous belt drive

♥ Control system: ♦ TM2101 computer servo system

                                  ♦ Back to origin automatically after the test

                                  ♦ store data automatically or by manual operation

♥ Data transmission:RS232

♥ Computer servo system :Desktop computer servo control tensile tester dedicated system

♥ Whole displacement: encoder (2500P/R), ascending 4 times precision

♥. Display modes: Windows Interface display

♥. Displacement resolution: 0.001mm

♥. Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint proportion,much order control mode and meet different test requirement.

♥. Safety device: ♦overload emergency stop device,

                              ♦fluctuation travel limit device,

                              ♦leakage automatic broken electricity system,

                              ♦automatic breakpoint stop function

6. Software: steel tensile test

The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.

Haida can provide a variety of fixtures customization services to meet all customers testing needs

Our company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Haida Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
