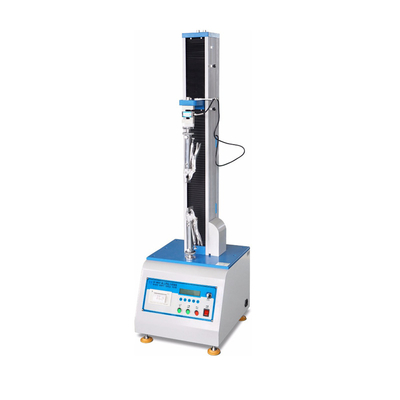

Lab Transverse and Longitudinal Zipper Reciprocating Pull Stretching Tensile Testing Machine
APPLICATIONS
This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.
HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING
Adhesives Tape/Pressure Sensitive Tape
Ø EN 1719: Loop Tack Test
Ø ASTM D3654: Shear Adhesion Test
Ø ASTM D3759: Tensile &Elongation Test
Ø FTM: 180&90 Degree Peel Test, Loop Tack
Ø EN 1939, ASTM D3330: 180&90 Degree Peel Test
Ø ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
Main Technical Parameter:
|
Item |
Description |
|
Frame capacity |
200kg |
|
Load cell brand |
China brand, 200kg (5,10,50,100kg are optional) |
|
Load accuracy |
1% F.S |
|
Printing |
Built-in Printer |
|
Control system |
Controller with LED |
|
Motor |
Adjustable-speed motor, ball screw rod |
|
Force reading |
KG/N/LB |
|
Vertical test space |
900mm including fixture |
|
Test speed |
50~300mm/min (adjustable by rotary knob) |
|
Software |
TM 2101 |
|
Data display |
Max. break force |
|
Safety features |
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Specification of main engine:
A. Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan)+Leeming reduction gears +synchronous belt drive
B. Control system: a, TM2101 computer servo system,b, Back to origin automatically after the test;c, store data automatically or by manual operation
C. Data transmission:RS232
D. Computer servo system :Desktop computer servo control tensile tester dedicated system
E. Display modes: Windows Interface display

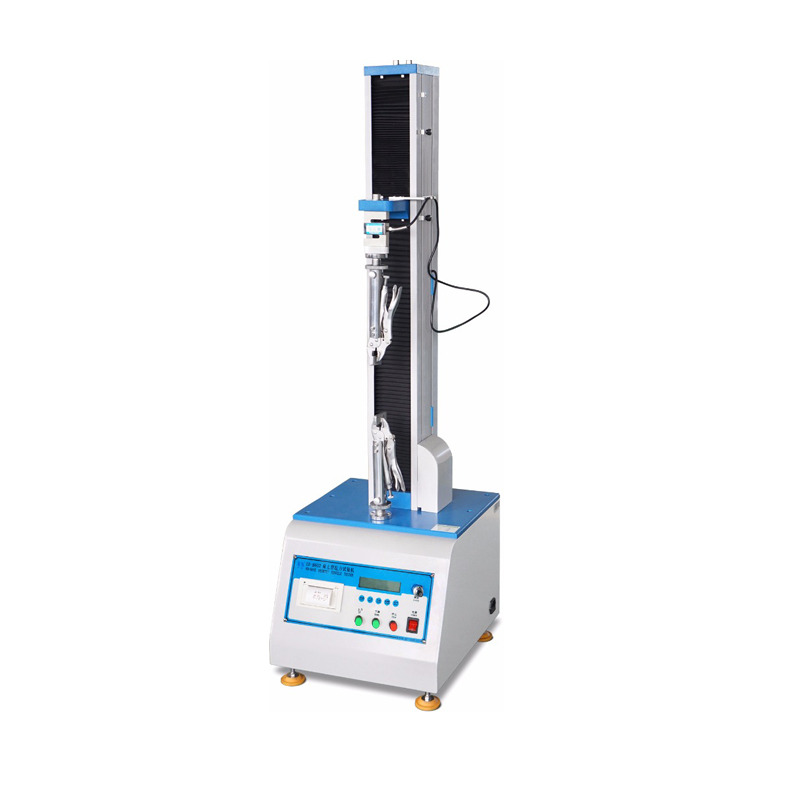

Pictures:
UTM Clamps:
Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
