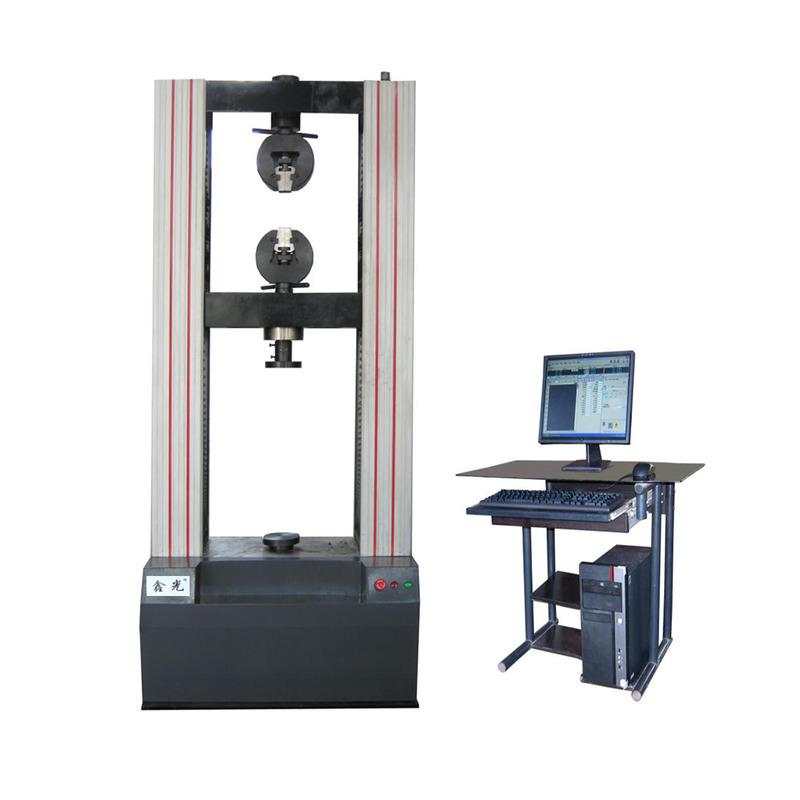

Maximum test force | 50kN |
Test force measurement range | 0.4% - 100% FS |
Test force subsection | it can chose subsection or no subsection of full travel |
Test force measurement accuracy | better than ± 0.5% of the indicated value |
Displacement resolution | 0.001mm |
Displacement measurement accuracy | ± 0.5% |
Deformation measurement range | 0.2-100% FS |
Relative error of deformation indication value | within± 0.5% |
Deformation resolution | 0.001mm |
Range of force control speed | 0.005 ~ 5%FS/S |
Relative error of force control rate | within ± 1% of the set value |
Adjustment range of deformation rate | 0.02-5% FS / S |
Relative error of deformation control rate | velocity＜0.05％FS,setting value within ± 2% ;velocity≥0.05％FS,setting value within± 0.5% |
Crossbeam measurement range | 0.01 ~ 500mm / min |
Relative error of crossbeam speed | velocity＜0.1 mm/min,setting value within ± 1% ;velocity≥0.1 mm/min,setting value within± 0.5% |
Control range of constant force, constant deformation and constant displacement | 0.5% - 100% FS |
Control accuracy of constant force, constant deformation and constant displacement | setting value ≥ 10% FS,setting value within ±0.1%;setting value＜10％FS,setting value within ±1% |
Tensile space | 0～650mm |
Compression space | 0～600mm |
Maximum travel of crossbeam | 600mm |
Test width | 400mm |
Power supply | single phase 220 V; 1.5 kW |
Overall dimension: | 760×460×1750mm |
Weight | 360KGS |
