Brief Information

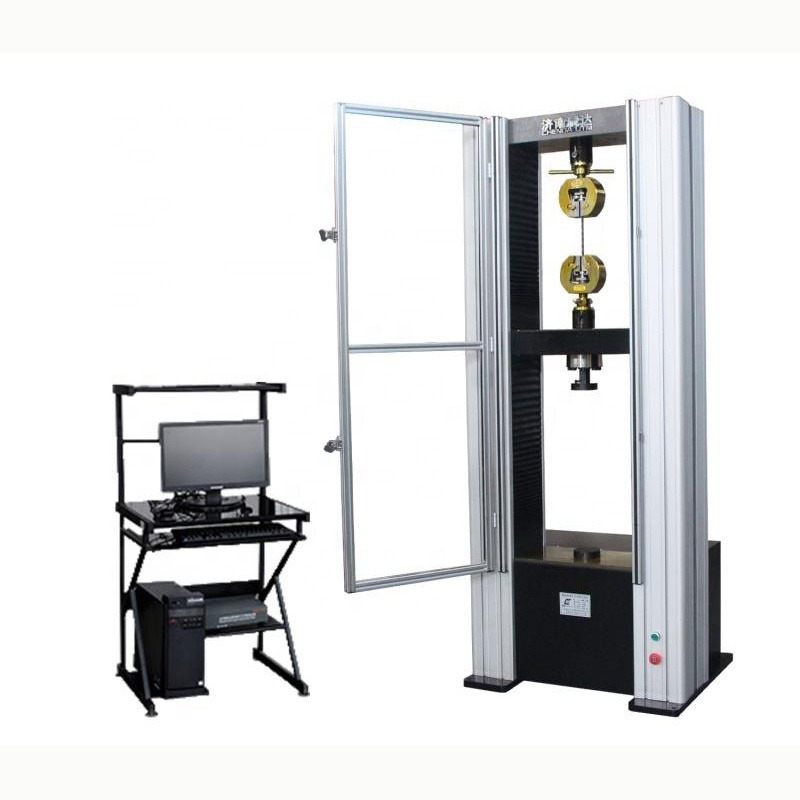

WDW-100 Electronic Universal Testing Machine with special tensile fixtures can do tensile strength test of rope . It is computer-controlled precision testing machine, Computer automatically control test program , display test date and analyze test results . The capacity is 100kn , so static tensile load can reach to 50 Kn.
Application :
Electronic Universal Testing Machine is suitable for non-metallic material such as rubber,wire ,rope,waterproofing membrane ,wood-based panel and small size ,small load metal material mechanical properties test. The relative fixture can be completed tensile ,compression,bending, shearing, tearing,peeling , static stiffness ,ring rigidity ,extraction and other performance tests . So it is widely used in many fields , and is an indispensable testing equipment for material mechanical property test in various industries .
Features:
1.Host Frame
●The mainframe is a double-space door structure. The driving principle is that the motor drives the ball screw pair to rotate after decelerating through the reducer system, thus driving the middle beam up and down to complete the test, the transmission is stable and the noise is low.
●Using four guiding optical screws, φ 40mm high precision ball screw.The high rigid frame is composed of thick beam and base,which can guarantee the frame with excellent longitudinal and transverse rigidity and good overall accuracy.
●Under the guidance of the internal control precision of 5% of coaxiality, the cross joint can be precisely aligned in axial test, and the linear motion of the beam can be guaranteed, so as to ensure that the influence of the lateral force on the specimen under load is minimal. Thus, better test performance can be obtained.
2.Controller
●Force , displacement , deformation measurement resolution up to 1 / 300000 of full scale
●AD sampling frequency can be as high as 300 Hz
●Can realize closed-loop control of parameters such as test force,specimen deformation and beam displacement .It can be used to realize the tests of constant speed- test force, constant speed- displacement, constant speed- strain, constant speed-load cycle, constant speed-deformation cycle and so on. Various control modes can be switched smoothly. And smooth transition.Advanced Neuron Adaptive PID Control algorithm.
Techinical Parameter | ||||||
Max. test force | 50KN | |||||
Accuracy of indication | ±1%(Special requirements ±0.5%) | |||||
Measurement range of test force | 1%-100% FS(Special requirements can reach 0.4%-100%FS) | |||||
Accuracy of displacement | ±1%(Special requirements ±0.5%) | |||||
Crosshead displacement resolution | 0.001mm | |||||
Adjust speed range | 0.005-500mm/min | |||||
Effective test space | More than 550mm | |||||
Test Space | More than 700mm | |||||
Distance between coloums | 400mm | |||||
Force value loading speed | 0.1-100 mpa/s | |||||
Force model | load cell | |||||
Deformation measurement way | cable encoder,resistance extensometer Large deformation extensometer | |||||
Voltage | 220 v(110 v for choice) | |||||
Packing material | Plywood |
800*630*2110mm | |
650*600*870MM | |
Inner packing | Inner packing |
Weight | 500kg |
Delivery:3-5 days after received the payment
Shipping:
Suitable for international transport through shipping by sea, by air or any other delivery method. according to the customer demands
(Note: we can provide special packages according to buyer's requirements.)
FAQ
Q: Are you trading company or manufacturer ?
A: Yes, we are one of the largest manufacturer of universal tensile testing machines and have a history of more than 13 years
Q: How long is your delivery time?
A: Generally it is 3-7 days if the machine is standard are in stock. or it is 15-20 days if the machine is special are not in stock, it is according to specification.
Q: What about the service and product quality?
A:Each instrument must be carried our 100%quality examination and test before shipping
We supply you detailed videos to help you install and use the machine well. All the machine worthy your trust .
Q: Can the device can be customized ?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
Q: How to distinguish whether we are a real manufacture of the machine ?
A:Come to visit the Factory
B: Require the group photo of salesperson and machine
C:Video withe the salesperson to see the machine by yourself.
