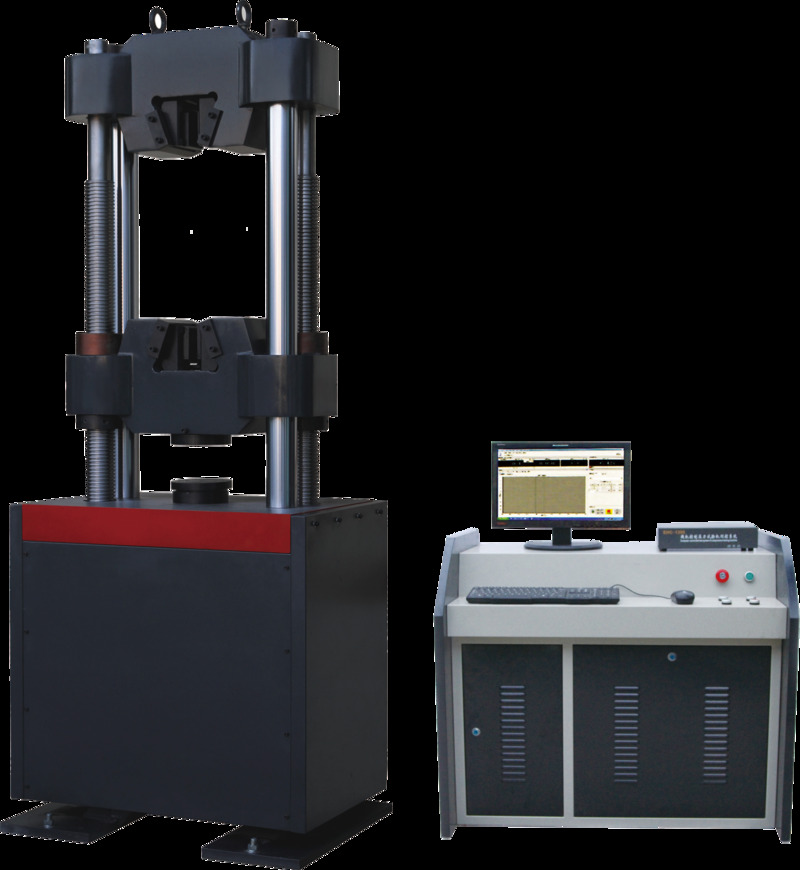

compression, bending, shearing tensile strength testing machine hydraulic universal material testing machine
hydraulic universal material testing machine is mainly used to execute the tension, compression, bending, shearing etc. hydraulic universal material testing machine test benchest for metal materials. Attached simple accessories and devices, universal test machine can be used to achieve many kinds of mechanical performances.
The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
Main specifications:
The table parameters for the company Standard Model parameters, we support customer customization parameters
|
Model: |
HD-B616-3 |
|
Max. Test load: |
100T |
|
Relative error of indicate value of load : |
±1% |
|
Max. Ram stroke: |
250mm |
|
Max. Tensile space: |
800mm(including piston stroke) |
|
Max. Compression space: |
700mm(including piston stroke) |
|
Display: |
Computer control and display |
|
Tensile grips for round specimen : |
φ6-φ26mm |
|
Tensile grips for flat specimen: |
0-15mm |
|
Distance for two columns: |
500mm |
|
Upper and lower platen size: |
200x200mm |
|
The span of bending: |
450mm |
|
Width of bending roller: |
140mm |
|
Dia. of bending roller: |
30mm |
|
Clamping mode: |
Hydraulically |
|
Transducer: |
load cell |
|
Deformation measuring: |
YYU–10/50 |
|
Dimensions of load frame : |
990×600×2435mm |
|
Dimension of controller : |
1140×700×930mm |
|
All weight: |
2800kg |
Application:
1, This Hydraulic Universal Tensile Testing Machine is fully computer controlled; the testing dates and testing curves can be displayed by computer and printed by printer
2,The equipment are used for tension, compression, bending and shearing test of metal materials.
3,Material: Metal, nonmetal materials Equipped with simple auxiliaries, it can be used for mechanical property testing of fastener, wire rope and components.
4,It is perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise.
Standards: ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN, EN10002-2, ISO6892, BS4449:1998 and other international standards.
Haida can provide a variety of fixtures customization services to meet all customers testing needs
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
