LIYI Peel Force Extensometer Tension Compression Pull Tensile Tester / Universal Testing Machine Price

1.0 Sets
MOQ
LIYI Peel Force Extensometer Tension Compression Pull Tensile Tester / Universal Testing Machine Price
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 12 Months, 12 Months
Customized Support: OEM, ODM, OBM
Power: Electronic
Capacity: 1,2,5,10,20,50,100,200kg Optional
Load Resolution: 1/150,000
Test Accuracy: 0.5%
Test Speed: 0.1/50~300 Mm/min, Constant Speed 300mm/min
Weight: 75kg
Dimension (W*D*H): 50*50*107cm
Certificate: CE ISO
Power Supply: 220V 50Hz / 380V 60hZ
Standard: ASTM ISO EN JS
Basic Infomation
Payment & Shipping Terms
Product Description

LIYI Peel Force Extensometer Tension Compression Pull Tensile Tester / Universal Testing Machine Price

Product Description

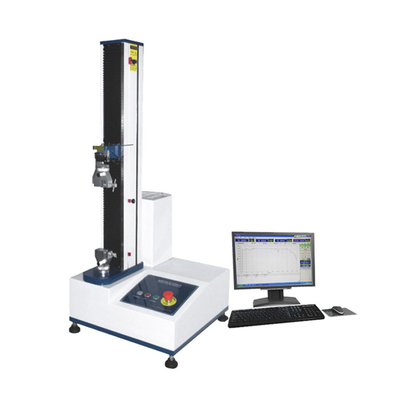

   This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.

Specifications



Model

LY-1065

LY-1068

Capacity

1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize)

Accuracy level

0.5

Effective pull space

1200mm(contain grips)

Effective test width

400mm

320mm

Effective test force range

0.02/100~100%

Speed accuracy

Less than ±0.5%

Displacement accuracy

Less than ±0.5%

Deformation test accuracy

Less than ±0.5%

Sensor

high accuracy sensor

Test force resolution

1/250,000

1/150,000

Test Speed

0.1~500mm/min

50~500mm/min

Motor system

Panasonic servo motor + Panasonic sevor drive

AC motor + AC drive

Software controlling system

Fully computer control, can do constant stress, constant strain, constant displacement,ect. test

Lifting control

Computer control or manual button control

Grips

Customize according to customer requirements

Optional parts

Lenovo computer

Dimension

(W*D*H) 58*58*145 cm

Weight:

About 70 kg

Operation method

computer control

Operation system

TM2102

Power

1Ø,220V/50HZ

Product Effects



Company Information

     Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

     Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing. Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products. Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
