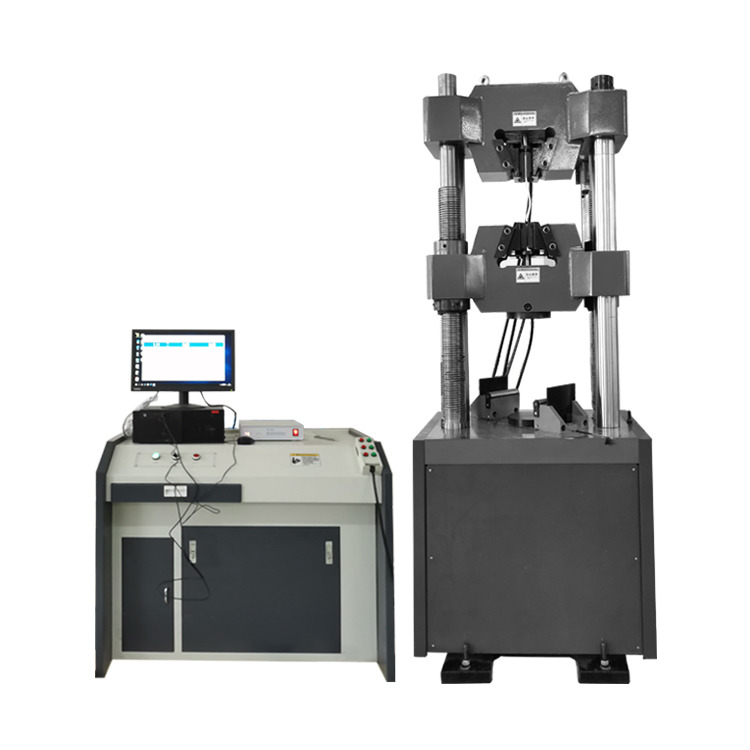

Hydraulic Universal testing machine utm 2000kn Introduction
Computerized Electro-hydraulic Servo Universal Testing Machine is widely used for tensile and bending test for steel rebar, carbon steel bar, deformed steel bar.
It adopts 4 columns with chrome plated and 2 leading screws, high stiffness, more stable.
Press button operated hydraulic tensile grips, easy operate.
It's computer controlled servo hydraulic type, the piston goes up and high precision load cell directly measuring testing force, encoder measuring displacement and electric extensometer measuring specimen's extension.
Universal testing machine 6 pillar Function and performance index
| Force measurement in four levels: | 100%, 50%, 20%, 10% (automatic range switching) |
| Measurement force resolution: | 0.05% |
| Force measurement accuracy: | ± 1% |
| Deformation measurement range: | Maximum deformation of random electronic extensometer |
| Deformation measurement is divided into three levels: | 20%, 50%, 100% (automatic range switching) |
| Deformation measurement resolution: | 0.05% |
| Displacement measurement range: | Host compression range |
| Displacement measurement resolution: | 0.02um |
| Displacement measurement accuracy: | ± 1% (> 5mm) |
| Loading rate: | Real-time display manual control loading rate |
| Load, deformation, loading rate display, load measurement peak hold | |
| Test date, test number, test temperature, material grade, So, Su, Lo, Lu manual test input A, Z | |
| Fm load value measurement | |
| ReH, Rel, Rp0.2, Rm intensity measurement | |
| Elastic modulus E display | |
| Overload protection automatically stops. | |
Hydraulic universal tester performance characteristics:
1.Abrasion-resistant lining is added between the jaw base and the jaw clamp plate to prevent the scale from falling during the metal stretching process, which causes the bevel of the jaw base to be scratched, making the clamping process smoother and the addition more reliable.
2. The measurement and control software is based on the Chinese Windows XP operating system platform. It has fast running speed, mild interface, menu prompts, mouse operation, multiple sample information input modes, and can meet the test of different materials. Automatically generate batches of samples that have already entered the same conditions at one time, and can also create condition templates.
3. The full resolution of the test force display is unchanged to ensure the accuracy of the test data measurement.
4. The experimental data (test force, loading rate) and test curve are displayed on the screen in real time along with the test
process.
5. After the experiment, the test data is automatically analyzed, stored and printed.
6. Automatic overload protection shutdown when the load exceeds 2% -5% of full scale
7. Query related historical records automatically based on test date
8. The software reserves the database interface, which is convenient for the local area network between laboratories and the experimental data management.
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn't work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park, No. 1413 Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
