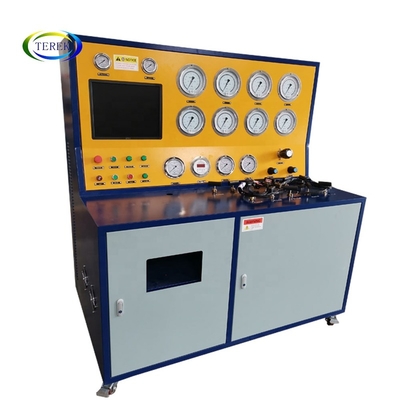

TEREK Computer Safety valve test bench is a new type device designed and manufactured by our company, The structural design are compact, Combined the air driven liquid booster pumps,gas/nitrogen booster pump,Precision high pressure gauge,electro connecting pressure gauge ,needle valves ,control switches ,electromagnetic valve ,Pressure relief regulating valve ,Pneumatic control ball valve ,pressure transducer ,data acquisition system ,Hydraulic clamping device ,data printer and other precision accessories are assembled in the frame or closed cabinet.
TEREK always focuses on high-pressure fluid transportation and pressure testing equipment, providing perfect high-pressure fluid transportation solutions and services, and providing high-quality products and services is TEREK's eternal goal.
Used for testing all kinds of safety valve, such as spring directly load safety valve, Power assisted safety valve, Supplementary loaded safety valve, fully open, slightly open, flange, thread type safety valve.
Safety valve test bench is to use high pressure air or nitrogen as the medium to test the sealing performance of the safety valve, jump pressure, back seat pressure, etc., for a variety of safety valve set pressure adjustment, set pressure test, discharge pressure test, back seat pressure test, test the pressure sealing performance of the safety valve, leakage rate.
Main technical data for Manual/ Computer control safety valve test bench
Model: TVT-40-DN400-CC Computer Safety valve test bench
1.Pressure testing range : 10-480 bar for option(gas pressure and water pressure)
2.Testing medium :Normal air nitrogen, water;
3.Test valve diameter: DN15- DN400 for option
4.Testing pipelines :1/2 pipelines
5.Pressure control accuracy: less than 1%F.S;
6.Pressure measurement accuracy: 0.4 pressure gauge (optional higher pressure level);
7.Pressure range scale :0-2.5MPA ,0-16MPA ,0-25MPA ,0-60MPA(Can be customized)
8.Station interface type: screw and flange type
9.Clamping way : Hydraulic cylinder clamping force or pneumatic clamping
10.Clamping force range :0-30Tons
11.Supply voltage: 50Hz -60Hz ,220V/380V for option
12.Size:1500×950×1600mm(machine) +1370×800×650mm(clamping device)
It is a kind of use compressed air as power source, Air - driven gas or nitrogen booster pump as pressure source, by adjusting air - driven pressure to obtain the corresponding outlet pressure; The ratio of outlet pressure to air drive pressure is 40:1. When the driving pressure and the outlet pressure are balanced, The air-driven liquid pump will automatically stop pressurizing,
1.Pneumatic pressurization technology is used to stabilize the pressure without fluctuation, and the output pressure can be adjusted.
2.Automatic clamping system for quick valve installation and positioning.
3.Clamping pressure source pneumatic liquid booster pump, high pressure and stable output pressure.
4.All high pressure valves, pipelines and joints are made of stainless steel.
5.The clamping table adopts the three claws type, with stable output force and uniform pressure distribution
Shandong TEREK Manufacture & Trading Co.,LTD was established in 2000. TEREK Company focus on provide various kinds of pneumatic and hydraulic booster pumps, Safety valve test bench, booster systems and pressure solutions to the customers all over the world ,
With more than 18 years experiences in fluid pressure exchange and controlling field.Good quality products and perfect after-sale service have won us a good reputation and a lot of customers both at home and abroad.
1. We'd like to provide our professional advice regarding machines, materials, packing and market for this product.
2. We'd like to customize special machine according to customer’s request.
3. We'd like to help our customers for booking ship as customer request.
5. Operation manual will be provided after shipment.
6. We provide two year warranty.
7. Free wearing parts will be sent together with the machine .
8. Working video of the machine will be sent to you accordingly to your need.
1.Q : Are you manufacturer ?
A: Yes, We are the manufacturer with continuous and improved R&D. Production, Quality Check and service supply.
2.Q : Can I get your price list ?
A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.
3.Q : Do you have stock for all items?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
