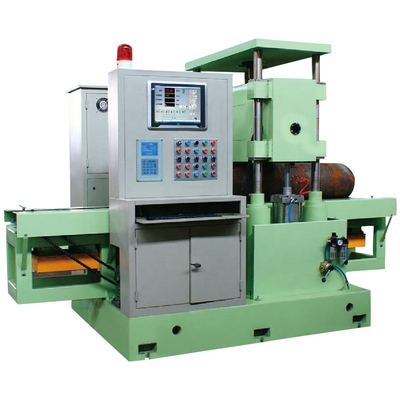

Name: Rockwell Hardness of Parts Like HRSS-150 Rockwell Steel Pipe Online Automatic Hardness Tester
Brand: Rockwell Hardness of Parts Like HRSS-150 Rockwell Steel Pipe Online Automatic Hardness Tester
SKU: HRSS-150
Price: 1 USD
Availability: InStock
Rating: 4.9 (137 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year

Type: Hardness Tester

Model Number: HRSS-150

Product Name: HRSS-150 On-line Automatic Rockwell Hardness Tester

Measuring Scale: HRA / HRB / HRC

Power Supply: Power Supply: 380V AC, Three Phases/220V AC, Single Phase, 50Hz

Hardness Indicating Type: Four Digits Shown On PC

Record Type: Communication Protocol And Database

Online Single Point Testing Cycle: 60-90 Seconds

Name: Online Automatic Rockwell Hardness Tester

Usage: Rockwell Hardness Of Parts Like Steel Pipe, Pressure Vessel

Certification: ISO9001

Basic Infomation

Certification: ISO9001

Model Number: HRSS-150

Payment & Shipping Terms

Packaging Details: Standard export packaging for HRSS-150 On-line Automatic Rockwell Hardness Tester.

Supply Ability: 900 Set/Sets per Month HRSS-150 On-line Automatic Rockwell Hardness Tester

Product Description

Product introduction: Automatic test force closed loop control system,
Automatic Rockwell hardness measurement system,
Constant depth automatic milling test surface,
Unattended intelligent online Rockwell hardness tester

Application:

This equipment is mainly used to determine the Rockwell hardness of parts like steel pipe, pressure vessel and drill pipe, etc., may determine the Rockwell hardness of other cylinder type and plane type parts also.

Feature & Use: * Precise positioning device for workpiece which can realize the accurate positioning of test point. * It can finish the process of clamping, milling, loading, unloading and hardness measuring of workpiece automatically. * Full automatic test force closed loop control system, test force is stable and reliable. * Automatic hardness display, no need for human operation. * The milling depth is uniform. * The upper and lower limits of hardness are preset in software. It can differentiate whether the test point is eligible or not. It also has the function of alarm in sound and light. * The testing conditions can be preset (including testing material type, workpiece name, date, operator name, etc.). * Test data can be saved in database for query at anytime. * There are many sensors built in whole on-line testing process which can finish the movement of workpiece and hardness testing automatically, no need for human operation.

Specification

Test force	588.4, 980.7, 1471N(60, 100, 150kgf)
Max. diameter of test piece	450mm(adjustable according to actual condition)
Measuring scale	HRA / HRB / HRC
Test force loading and unloading type	Electric loading and unloading automatic
Hardness indicating type	Four digits shown on PC
Record type	Communication protocol and database
Online single point testing cycle	60 -90 seconds
Language	Chinese/English
Power supply	380V AC, three phases/220V AC, single phase, 50Hz
Dimensions (for reference only):	Main machine --- 1800 x 1500 x 2000mm Weak current cabinet --- 780 x 400 x 1700mm Heavy current cabinet --- 780 x 500 x 1700mm Hydraulic station --- 1000 x 800 x 1200mm
Weight	Approx. 3500kg
