Model: TBTTLGG-1
I. Description:

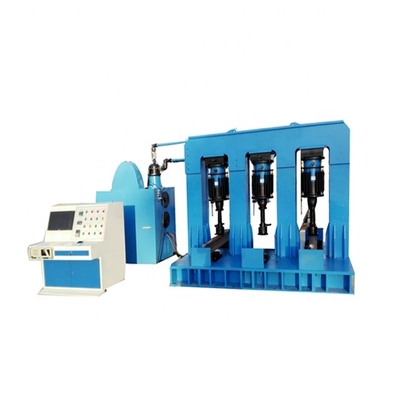

TBTTLGG-1 three-station rail pulsation fatigue tester is based on China's orbit practical needs of fatigue testing in research institutes of transportation engineering testing, specially designed and developed a multifunctional pulsating fatigue test system. Adopt 800ml large displacement pulsating hydraulic station, according to the actual needs of fatigue test technical conditions, multi-channel synchronous loading or single-channel independent loading, to achieve multi-functional, high-efficiency, energy-saving operation, and environmental protection.
The working principle of the electro-hydraulic pulsating hydraulic station uses the "electric-mechanical-hydraulic" energy conversion system. It has a clever design concept, scientific principles, reasonable structure, stable performance, reliable operation, low energy consumption, low noise, normal temperature operation, and no water cooling. The operating energy consumption is only one-twentieth of the electro-hydraulic servo fatigue test system with the same specifications and performance. The energy saving effect is very significant. It is a large-scale fatigue test equipment that is truly energy-saving and environmentally friendly. The field has unique advantages.
It is mainly used for testing the mechanical properties and fatigue life of large components and building structures. The machine is equipped with corresponding test loading attachments to achieve typical concrete or steel structures such as beams, columns, plates, frames, sleepers, rails and their welded joints, bridges (full-scale), steel trusses, rubber bearings, railway fasteners Static loading of assembly, steel wire anchors, cables, large deformed springs, slings, rigging, ring joints, automobile chassis, automobile front and rear axles, locomotive bogies, large-diameter precision-rolled rebar, highway pavement structures, etc. Dynamic load performance test and fatigue life test.
II. Main Configuration:
Mainly consists of 1 set of pulsating hydraulic station, 1 frequency conversion main motor, 1 full digital measurement and control system, 1 set of frequency conversion controller, 500kN high response and low damping. 3 actuators, 1 Advance tech industrial control computer system, 1 data acquisition and processing system, 1 pulsating fatigue test system software, 1 set of three-station portal-type reflexive force loading frame with maximum load of 1500kN, safety It consists of 3 sets of protection devices, 6 sets of special attachments for sleeper fatigue, 3 sets of hydraulic seamless steel pipe connection system (including 3 sets of high-pressure oil circuit cutoff valves), 3 sets of actuator stroke safety protection devices, etc. With concrete foundation installation to do the test.
III. Main Specification:
|
Maximum static test force
|
3 * 500kN |
|
Maximum dynamic test force |
3 * 500kN |
|
Test force accuracy |
± 1% |
|
Dynamic test force fluctuation |
≤2% Fs |
|
Dynamic test load asymmetry coefficient |
0.2-1.0 |
|
Working frequency range |
continuously adjustable 2-8Hz |
|
The maximum pulsating displacement of the pulsating hydraulic stationsliding friction pair
|
800 ml / time, steplessly adjustable; the main bearing structure adopts high load-bearing, high wear-resistant, anti-impact sliding friction pair; |
|
Spindle speed control |
Full digital electromagnetic stepless speed regulation, stable speed accuracy of 0.1%, speed change rate of 0.1%, speed measurement accuracy of 1rpm |
|
Pulsing displacement measurement indication |
Proprietary anti-interference pulsating displacement electromagnetic measurement digital display technology, maximum capacity 103 |
|
Test times measurement and control: |
anti-interference electromagnetic measurement technology 1 time / revolution, maximum capacity 108 preset shutdown, automatic storage after power failure |
|
pulsator main motor power |
22kW |
|
Lubricant pump motor powergear motor |
1.5kW high-speed gear motor |
|
Working oil pump motor power |
RK-38 radial piston oil pump motor 1.5kW |
|
Number of fatigue test channels |
5, the pipeline is equipped with a switching device, which can perform single-point or multi-point simultaneous fatigue tests |
Warranty: 1 year
