Introduction:

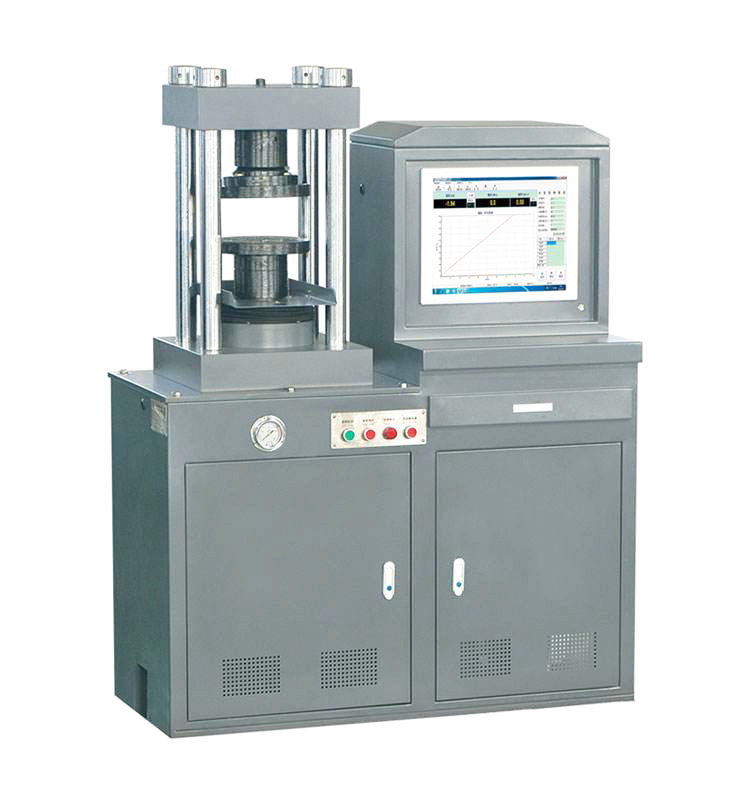

Concrete Cube Test Machine,Concrete Compressive Strength Testing Machine,Automatic Compression Testing Machine adopts hydraulic system host and set in the integration of structure form, structure is compact, small and exquisite. Adopts hydraulic loading, electronic load, display the loading rate, peak holding, etc, and is equipped with a micro printer. The machine is suitable for cement compressive strength, building mortar compressive strength test, can also be used for the four-point bending test of concrete.
Hydraulic system
Hydraulic oil in this tank through motor driven high pressure pump into the oil, the oil flows back to the valve and into the cylinder. Force measuring instrument analysis of data gathered by sensors, display all the time force value, the operator through the oil valve to control flow, realize the test force rate of speed.
The force measurement system
Manually adjust back to the oil valve, concise and flexible operation;
Has the largest load peak value holding function;
Has the function of loading rate, dynamic display;
Has the test date, serial number, failure load, compressive strength and other randomized trials report.
Safety protection device
When the test force by more than 3% of the maximum test force, overload protection, the oil pump motor downtime.
Technical Parameter
| The maximum test force | 300KN |
| Test force range | 10%-100% |
| Test force shows value relative error | < ±1% of the shows value |
| The Max. spacing between upper and lower pressure plate | 230mm |
| Piston stroke | 80mm |
| Hydraulic pump rating pressure | 25MPa |
| The pressure plate size | Φ155mm |
| Piston diameter | φ125mm |
| Dimension | 850*620*1340mm |
| Power of motor | 0.75kW |
| Weight | 500kg |
Main configuration
| Name | Qty | Note |
| Tester | 1set | Including motor, oil pump, the valve |
| Force measuring instrument | 1set | On the host, including the micro printer |
| Pressure sensor | 1pc | |
| Concrete flexural assistive devices | 1set | ---------- |
| Pressure up and down plate | 1set | ---------- |
(1). Strong standard wood case, inner plastic films wrapped for Concrete Cube Test Machine,Concrete Compressive Strength Testing Machine,Automatic Compression Testing Machine
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
1. Are you manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, We are one of biggest manufacturer of Universal Tensile Testing Machine in China; Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Tel:+39-011-2730000
Address: Strada della Cebrosa 86, 10156 Torino Italy
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Please feel FREE to contact us if you have any needs.
