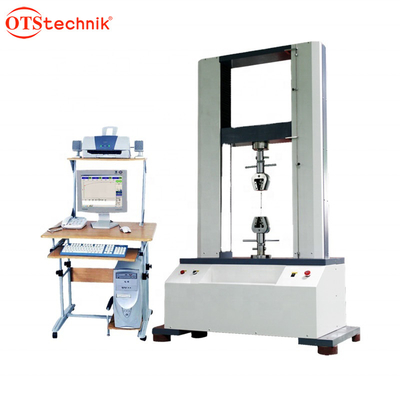

Tensile Machine Tensile Skin Testing Compressibility Impact Adhesion Force Test Machine

1 Set
MOQ
Tensile Machine Tensile Skin Testing Compressibility Impact Adhesion Force Test Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Model Number: XB-OTS-5T
Power: Electronic
Product Name: Tensile Impact Test Machine
Control Mode: Microcomputer Or PC Control
Grips: Customized Depends Of Different Test
Test Speed: 0.5~500 Mm/min
Stroke Resolution: 0.01mm
Test Stroke: 1000mm
Max Capacity: 40KN
Force Precision: ±0.5%
Motor: Servo Motor
Usage: Tensile Compression Testing Machine,Universal Testing Equipment
Certification: Pcoc, GS
Basic Infomation
Certification: pcoc, GS
Model Number: XB-OTS-5T
Payment & Shipping Terms
Packaging Details: Strong standard wood case, inner plastic films wrapped for Tensile impact test machine
Product Description
Products Description

Universal Tensile Tester

The testing machine is widely used in all kinds of hardware, metal, sealants ,rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.
Product Paramenters
Model
XB-OTS-600
Support Customized
Yes
Max capacity
5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg,etc.(It is optional.) can be setting
Induction method :
Precision load cell (sensor)
Max. Load Capacity :
5000kg
Force Resolution/Accuracy:
± 0.5%
Accuracy class :
0.5
Resolution:
1/1,000,000
Test width:
400mm(Standard specifications special specifications can be customized)
Test stroke :
Max.700 mm( included the fixture)
Stroke Resolution:
0.01mm
Speed range:
0.001-20inches/min
Reference Machine Dimension:
800×530×1600mm (L*W*H) Support Customized
Power :
1 phase 220V 50/60Hz
Packing
Standard Export plywood case
Force system
servo drives + Servo motor + precision ball screw drive
Control system
Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System
TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed
of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly
improved, faster operation, control accuracy higher


Obtain data
The key components are used America's most stable and ultra-precision 24 yuan AD,
sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the
resolution of up to 1,000,000 indexing
Displacement Control:
Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm
Safety devices:
1. overload, emergency stop device 2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device


Reference standard
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903、GB/T16491CNS-11888、JIS K6854, PSTC-7 、ASTM E4、ASTM D828、ASTM
D882、ASTM、D1938、ASTM D 412 、ISO 8339ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130 、 ISO 527 、ISO 178 and
other
standards.
Details Images

Test function:

1. The use of mulch-threaded parallel processing technology, the testing process is displayed at the same time force - displacement, force - time, displacement - time, stress - strain curve, you can easily switch to the curve of the screen to see, and can view the user settings, etc. 2. The flexible and powerful way to customize the test method, with constant speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step nested loop control. It can be set to automatic return, automatic judgment fracture, auto-zero function 3. Standardized test process control and report output templates so that you can define as many test standard for users to call, covering GB, ASTM, DIN, JIS, BS ... almost all test criteria 4. Combining different fixtures and accessories, do all kinds of products and materials most strongly, breaking strength, peel strength, tensile strength, shear strength, tear strength, maximum deformation, yield strength, elongation, modulus of elasticity, ring stiffness, non-proportional elongation, interval minimum force, interval average power, power take constant elongation, elongation given power to take as many as more than 400 pilot projects

Advantage

Ø 24 hours online Ø 35 years experiences Ø Sample chamber of each model Ø Best price, fast delivery Ø OEM,ODM Ø Oversea offices Ø Own import and export business license ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

Ø Installation Ø Training (Training customer employees) Ø Calibration Ø Preventative maintenance Ø Replacement parts Ø Assistance via phone or internet Ø On-site diagnosis and repair/online diagnosis and repair
Product packaging
Company Profile

Dongguan Xinbao Instrument Co., Ltd

Anual sales over 1,500,000USD; 30,000㎡ manufacturing base, equppied with advanced machine, 120 technicians and over 50 sales engineers, Dongguan Xinbao Instrument Co., Ltd, with its self-owned brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. We own sophisticated and advanced technologies in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chamber, rain and dust test chamber, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test euipment and so on.
Production process
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
