Home /Products/Mechanical Tensile Testing Machine/Featured tensile product: high tensile strength galvanized steel wire tester

Featured tensile product: high tensile strength galvanized steel wire tester

1.0 Sets
MOQ
Featured tensile product: high tensile strength galvanized steel wire tester
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Model Number: DRK101A Tensile Tester
Power: Electronic
Application: Tensile, Elongation, Breaking, Peeling Etc 9 Experiments
Standard: ISO, GB/T, ASTM, JIS, QB/T, DIN, YY, YBB
DRK101A: Force: 100N 500N 1000N 5000N; Route: 400 Mm
DRK101B: Force: 100N 500N 1000N 5000N; Route: 700 Mm
DRK101C(PC): Force: 100N 500N 1000N 5000N; Route: 1000 Mm
DRK101SD: Force: 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 50KN; Route: 600mm
DRK101SA: Force: 20KN, 50KN; Route: 600mm
DRK101-300: Force: 300KN; Route: 600mm
DRK101DG(PC): Columns: 6; Force: 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN
DRK101E Medical: Force: 50N 100N 500N 1000N; Route: 400mm (customized)
Basic Infomation
Model Number: DRK101A Tensile Tester
Payment & Shipping Terms
Packaging Details: Veneer case with plastic film wrapped or as per your request
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

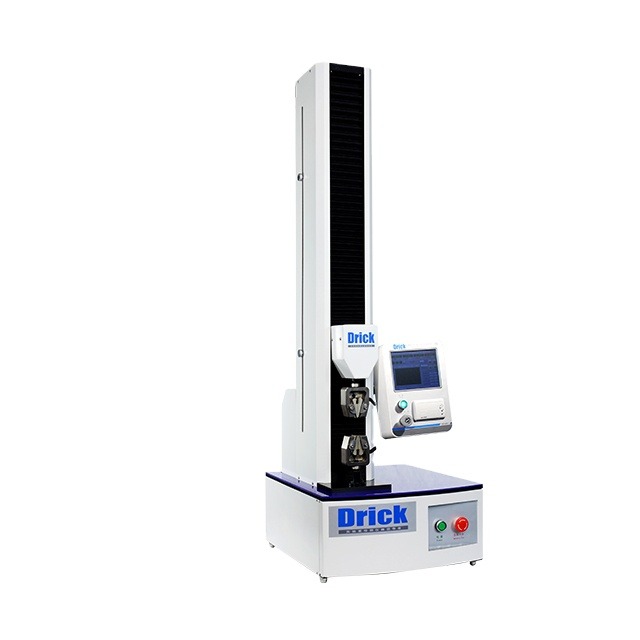

DRK101 Tensile Strength Tester

Product Introduction
Factory direct supply: cable tester is designed adopting modern mechanical design concept and human body engineering design criterion with advanced microcomputer processing technology .It has a novel design, excellent performance, and beautiful appearance.

Product Features
1. Transmission mechanism uses ball screw, making it stable and accurate. Adopt imported servo motor, low noise, the control precision. 2. LED display; Real-time display force-time, force – distortion, force - displacement, etc. Latest software with the function of real-time display tensile curve; Instrument has powerful ability to display, analyze and manage data. 3. Adopt the modular size printer, convenient installation, low failure; thermal printers 4. Getting test results directly : At the completion of a set of tests, it can easily display measurement result and print our statistical report, including the average value, standard deviation and coefficient of variation. 5. High degree of automation: instrument selecting advanced devices; microcomputer information sensing, data processing and action control, automatic reset, data memory, overload protection, etc. 6. Multi-function, flexible configuration: The instrument is mainly used for plastic film but it can be widely used for other materials, such as paper, chemical fiber, metal wire, metal foil, and so on.

Technical Standard
This machine is designed and manufactured according to GB/T 12914-1991, and its every capability conforms to relative test standards such as GB 13022-91,GB/T1040-92,GB2792-81,GB/T 14344-9,GB/T 2191-95,QB/T 2171-95.

Product Parameters
ower：AC 220V 50Hz
Specification
100N 500N 1000N 5000N(optional)
Accuracy
higher than 0.5 grade
Resolution
0.001mm
Test speed
1-500m
Sample quantity
1
Sample width
30 mm(standard) 50 mm(optional)
Specimen clamping
manual
Route
400 mm(customizable)
Dimension
500mm(L)×300mm(W)×1150mm(H)
Power
AC 220V 50Hz
