Features

Specifications

Warranty: 1 Years

Customized Support: OEM

Model Number: UTM

Power: Hydraulic

Max.load: 300KN

Load Accuracy: Class 1 (Class 0.5 Optional)

Load Range: 1%-100%FS (0.4% -100%FS Optional)

Load Resolution: 1/500000

Piston Stroke: 200mm

Max. Tensile Test Space: 600mm

Max. Compression Test Space: 550mm

Effective Test Space: 440mm

Certification: CE

Basic Infomation

Certification: CE

Model Number: UTM

Payment & Shipping Terms

Packaging Details: "Inner : Water-proof plastic film packagingOuter : Plywood box for overseas transportation"

Supply Ability: 10 Set/Sets per Month

Product Description

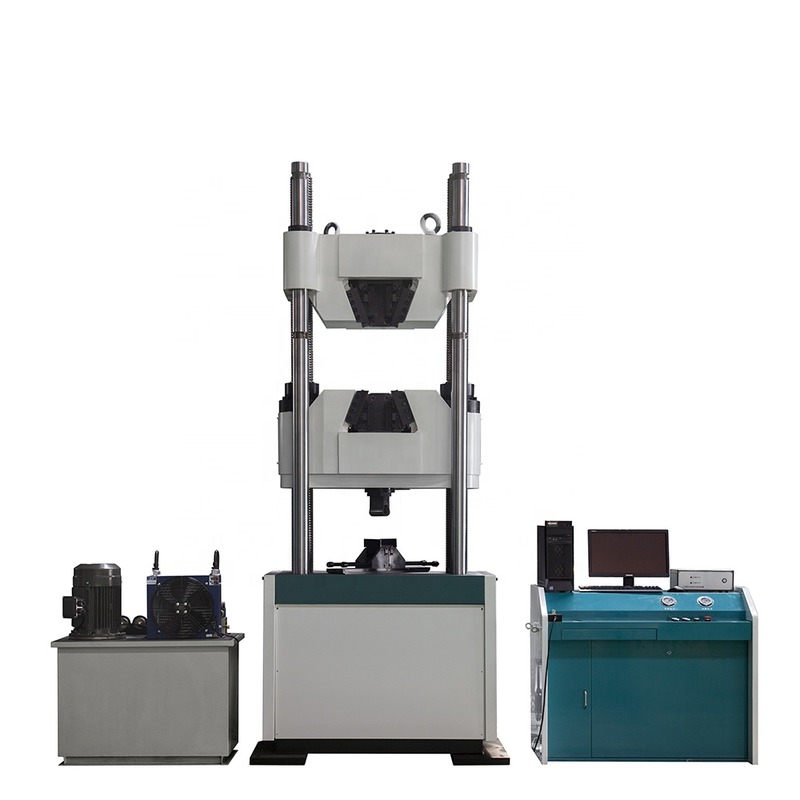

Hydraulic Motor Drive Hydraulic Universal Test Machine Tensile Testing Machine With Hydraulic Clamp Fixtures

1.Application Microcomputer-controlled Electro-hydraulic Servo Control Universal Testing Machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials in the state of tension, compression and bending.

2.Features 1) Can do Tension, Compression, Bending, Shear Test 2) Can test materials: rebar, steel bar, steel plate, carbon fiber steel bar, bolts, nuts, wire ropes 3) Can be customized following any customer's request and test standards. 4) Computer + Software control and display 6 kinds test curves: force - displacement, force - deformation, stress - displacement, stress - deformation, force - time, distortion - time 5) Fully closed loop servo control, adopts servo controller 6) Also have Computer Display Type, Digital Display Type

3.Technical Parameters

Model	WAW-300D	WAW-600D	WAW-1000D	WAW-2000D
Max.load	300KN	600KN	1000KN	2000KN
Load accuracy	Class 1 (Class 0.5 optional)
Load range	1%-100%FS (0.4% -100%FS optional)
Load resolution	1/500000
Piston Stroke	200mm	200mm	250mm	250mm
Max. tensile test space	600mm	700mm	700mm	800mm
Max. Compression test space	550mm	650mm	650mm	750mm
Effective test space	440mm	505mm	525mm	685mm
Clamping method	Hydraulic Automatic Clamp Fixture
Bending roller width(mm)	30x120mm
Bending span (mm)	30-450mm
Power supply	3-phase, 380V, 50HZ 2.0kw (can be customized)
