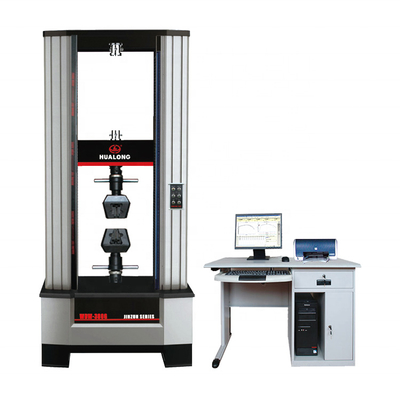

KASON universal testing machine utm 100kn Computer Electronic Universal Testing Machine with low price
Specifications: |
| |||||
Model | ETM503 | ETM104 | ETM204 | ETM304 | ETM504 | ETM105 |
Columns | Double Column | |||||
Load Capacity (kN) | 5 | 10 | 20 | 30 | 50 | 100 |
Test Grade | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Testing Force Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Testing Force Range | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS |
Force Resolution | 1/300000 | 1/300000 | 1/300000 | 1/300000 | 1/300000 | 1/300000 |
Displacement Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Displacement Resolution | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
Speed Range (mm/min) | 0.01-1000 | 0.01-1000 | 0.01-1000 | 0.01-1000 | 0.01-1000 | 500 |
Control Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Max. Tensile Testing Space(mm) | 670 | 670 | 670 | 770 | 770 | 650 |
Max. Compression Testing Space(mm) | 900 | 900 | 900 | 1000 | 1000 | 1000 |
Test width (mm) | 450 | 450 | 450 | 450 | 450 | 550 |
Compression Platen | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Load cell | High-precision USA load cell offers high stiffness, high stability, and high linearity Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test Self-recognition (TEDS) function, Regular self-calibration | |||||
Position limit switch | Upper and lower lights | |||||
Power Supply | AC220V±10%, 50Hz/60Hz | |||||
Overall Dimensions (L*W*H: mm) | 850 x 590 x 1750 | 840 x 570 x 1850 | 950x660x2000
| |||
Net Weight(kG) | 370 | 370 | 370 | 420 | 420 | 680
|
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.
| ||||||
Please contact KASON directly for best quotation
