Electronic Computeried Universal Testing Machine Price With Tensile Strength Test,Compression Test
Description:
Materials Strength Tester/computer universal test machine have a intelligence computer test system for universal testing.the operator will be get the date from the pc window like curve process, multi-sensor support, image interface, flexible data process and powerful system function.

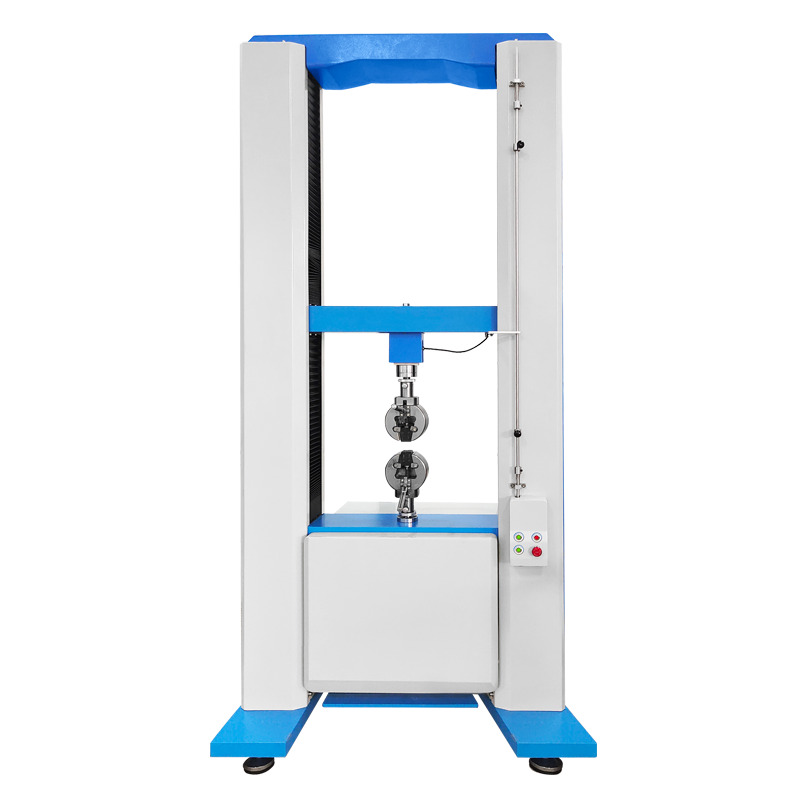

This universal test machine uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
Design Standard:
ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Standars Specification:
|
Item |
Description |
|
Frame capacity |
100kg-5T( can be optional ) |
|
Load cell brand |
Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional) |
|
Load accuracy |
0.5% F.S |
|
Control system |
PC with windows 7 system |
|
Motor |
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
|
Force reading |
kgf, Ibf, N, KN, T etc |
|
Vertical test space |
1000mm including fixture |
|
Horizontal test space |
≤420mm |
|
Test speed |
0.1~300mm/min (adjustable) |
|
Software |
TM 2101 |
|
Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
|
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
|
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
