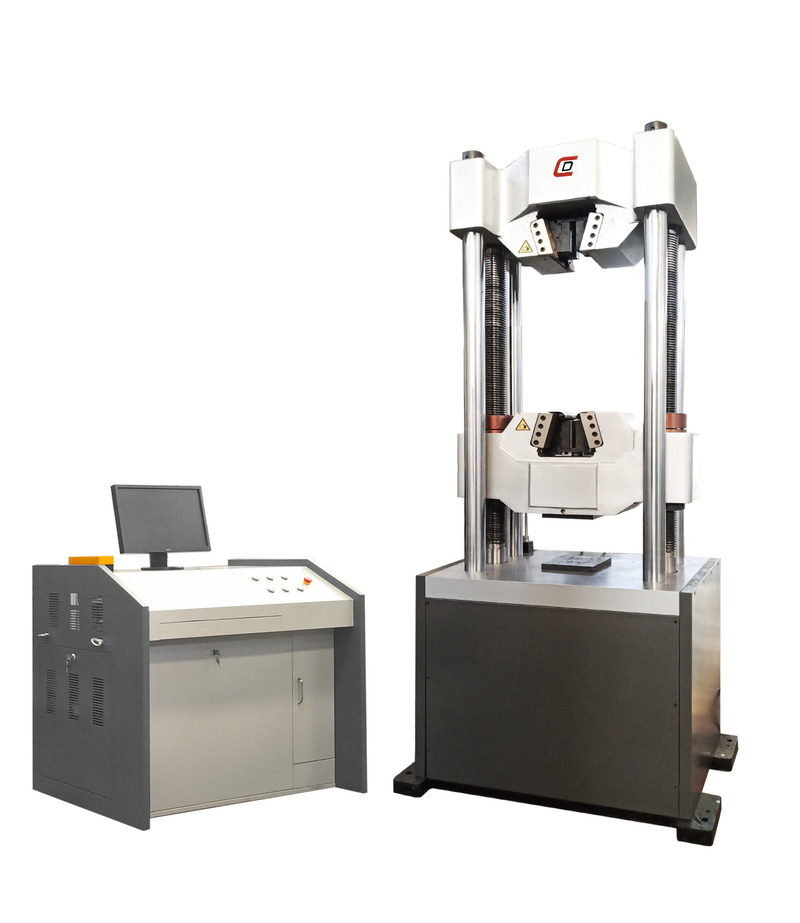

WAW-1000E Kn 1000 Electrohydraulic Universal Testing Machine 1000 Kn Material Testing Machine

WAW - 1000 E Computer Control Electro-hydraulic Servo Hydraulic Universal Testing Machine,This type machine is suitable for metal sheet,bar,screw and other products mechanical properties test .The relative tension fixture can be used to complete the tensile test of steel pipe,fastener, electronic power fittings, anchor,stand, chain and the other products .The Relative compression fixture can be used to complete the compresion test of cement,concrete,stone,block, hollow brick, spring and other products. The relative bending fixture can be used to complete the bending test of metal sheet ,bolt sheet performance test and so on.

Load Frame:

1>The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.
2>The machine with high rigidity test frame, can be fully loaded tensile testing, can meet high frequency test requirement.The central line of the upper and lower chucks and the tension axis of the tester are coaxially 5%.
3>High-precision gap seal cylinder,the unique static pressure oil film-free-oriented technology to protect the testing process running in the relatively indiscriminate friction environment.
4>Adopting inching and adjust speed hydraulic clamping device , provide more clamping security care.
5>Wedge jaw
The whole jaw is made of alloy steel,Heat treatment after Precision Machining in NC Machining Center,To ensure the economic service life of jaw, and to prevent slippage caused by pliers deformation.
Standards: ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN, EN10002-2, ISO6892, BS4449:1998 and other international standards.
Measuring System:
The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer
Technical Parameter:

1.Easy to control and friendly interface
Windows based interface, easy and fast to reach different functions, suitable for most of operators using habits.
2.Full digital display and computer control
Adopt special testing machine Controller, fast response and reliable to parameter gathering. Realize the digital adjustment and zeroing of LOAD, DEFORM and DISPLACEMENT as well as PID parameter adjusting.
3.Manual or program control of test process
The software provides multi functional control mode: Load (stress) control; Displacement (Stroke) control, Strain (Deformation) control, Load keeping, Displacement keeping, Customized programming control ect.
In stroke control mode, operator can define customized test speed to conform to different test standard. Preset limit position and return position will secure the safety and return the crosshead automatically after test finished. In program control mode, the testing machine is controlled by conditional programs, operator can input each condition to regulate test process, and software can realize constant parameter control through this function.
4.Multilevel authorization access
The software regulated different access level to protect machine calibration parameters. Reliable to secure the information safety and easy for software maintenance
5.Perfection of diagramming functions:
Realize the testing diagram online display and reproduction.
Zoom in or out the test diagram at any place with any rate.
Auto suit the diagram according to display resolution
Coordinates point tracing to check the test results in each point
6.The report creation as Excel, word and template
The software provide different way to create test report
Single material test report
Batch material test report
Customized test report
Coordinates point test report
7.Test curves
Load-Time
Extension-Time
Load-Displacement
Load-Extension
Stress-Strain
Etc
