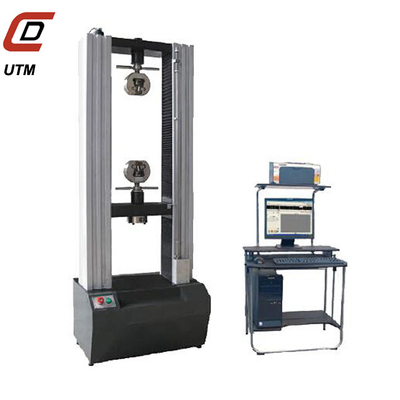

WDW-100 Testing Machine +Tensile Price+Medical Testing Machine Universal Testing Machine Laboratory Test Equipment

Brief Information

Model WDW-100 Computerized electronic universal testing machine is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine, suitable for wide range of material for tension compression, bending and shearing test. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many field used in many fields such as industry factories, mineral enterprise and high schools.

Feature:

1> Complete computer controlled: the whole measuring and controlling system adoptsspecific PC control card used for testing machines, realizing the data zero and plus adjustment, which has very high reliability.
2>Supporting multi-transducers. Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer.
3> Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad
4>Control software has the the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.
5>Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.
6>The user can self-define the output of the test report, which makes the report format have high flexibility.
7>Modularization design facilitated the software upgrading, function spreading as well as the second development.

Force measurement

Load accuracy meets or exceeds grade 1 ASTM E4,ISO7500-1,EN10002-2, BS1610,DIN51221

Displacement measurement

Encoder over 2000 pulse/turn to guarantee the accurate displacement, the encoder is installed with the ball screw and the ball screw to drive it turning directly.

Speed setting

Speed can be set between 0.01-500 mm/min by computer and excellent servo motor can support the high speed, and the speed can be extended by special offer.

Load frame

Robust compact structure guarantees the stiffness of the machine, and the servo motor drives the no backlash ball screw to do test

Software features

1. Language selection: English and other languages interface freely switch operation,

2. Basic functions: calculate and list data graphics: the basic parameters of a material testing machine: (1).yield point(2).0.2% off set.(3). Yield strength(4). Tensile strength(5). Elongation(6). Energy absorption(7). Maximum(8). Rupture values(9). Deformation amount (10). Averages. More than twenty parameters contrast to graphics.

3. Multiple curve display mode: Stress - strain, Force - displacement, Force - time,

Strength –Time and other curve patterns.

4. Control mode: fixed displacement, fixed speed, constant strain rate, fixed load, fixed load rate, fixed strain rate, etc.

5. Dynamic display: During the test, the load, elongation, displacement and experimental curves selected as testing, real-time dynamic display on the main screen.

6.Automatic identification ,storage: test conditions, test results, regression

7.Graphical Analysis: After the test is completed, you can use the mouse to view data from the test curve, any point on the test curve can be enlarged analysis, and choose Print.

8. Report Output: Graphics and arguments are opened to customers and can be modified as required. It can output different report formats, convenient and easy to learn practical.

All Kinds Of Testing Materials
