Brief Introduction:

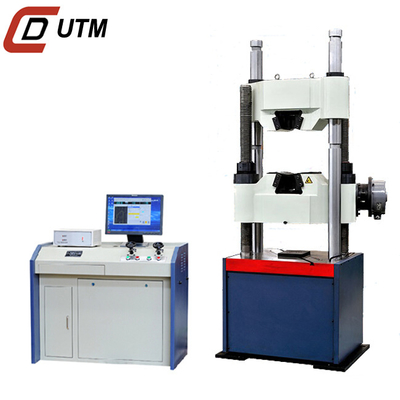

WAW-1000C Hydraulic Universal Testing Machine With Tensile Compression Test is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes.
Load Frame:
The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.
Standards: ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN, EN10002-2, ISO6892, BS4449:1998 and other international standards.
Measuring System:
The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer
Features:
1> Full computer controlled of testing process.
2> Overload protection will secure operators
3> Adopt oil-hydraulic automatic clamps which can be operated from separate control box
4> Programmable testing software makes LCF testing or cyclic testing become available
5> Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards.
6> Report guide will create your testing report in only three steps
Technical Parameter:
Worm Gears
Tensile Grip
Round specimen clamping range:
Φ13~Φ26 Φ26~Φ40 Φ40~Φ60 mm
Flat specimen clamping thickness: 0-20,20-40mm
MAXTEST Software Interface
One machine can add four load cell
One machine can add 8 extensometer
Software have all kinds of test standards
