Laboratory Equipment Electronic Tensile Testing Machine Elongation Material With Big Wrench Clamp Fixtures

1 Set
MOQ
$5,300.00(1 - 1 Sets) $5,200.00(>=2 Sets)
Price
Laboratory Equipment Electronic Tensile Testing Machine Elongation Material With Big Wrench Clamp Fixtures
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Model Number: ETM-5
Power: Electronic
Max. Load Force: 5KN 10KN 20KN
Crosshead Travel(mm): 1000
Effective Tensile Space (mm): 700
Effective Test Width (mm): 400
Certification: CE
Basic Infomation
Certification: CE
Model Number: ETM-5
Payment & Shipping Terms
Packaging Details: Inner: Water-proof plastic film packagingOuter: Plywood box for overseas transportation
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

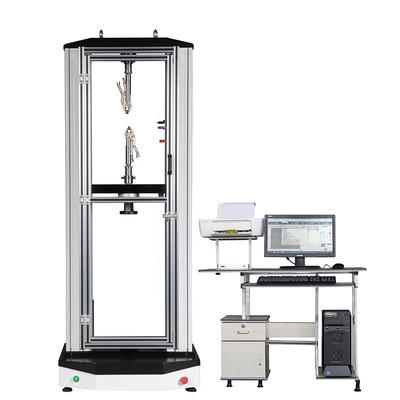

Computer Control Electronic Test Machine Force Testing Machine Laboratory Testing Equipment With Big Wrench Clamp Fixtures





1.Application Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.

 2.Features 1) Computer + Software control and display 6 kinds test curves: Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time 2) Can be installed extensometer to test deformation of rubber or metal material 3) Can do high temperature test by high temperature oven and furnace 4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures 5) Can be customized height, width, and follow any test standard or customer request 6) Also have Digital Display Type. 3.Technical Parameters
Model
WDW-5/10/20
Max. load force
5KN 10KN 20KN
Crosshead Travel(mm)
1000
Effective tensile space (mm)
700
Effective Test width (mm)
400
Crossbeam travel speed(mm/min)
0.001-1000
Load accuracy
Class 1 (class 0.5 optional)
Load range
1%-100%FS (0.4%-100%FS optional)
Load resolution
1/300000
Round specimen clamping range(mm)
4-9
Flat specimen clamping range(mm)
0-7
Tensile grip
Manual Wedge Fixture
Compression Plate(mm)
Φ100x100 mm
Electronic Extensometer for metal material
YUU10/50 (optional)
Large deformation extensometer for rubber
DBX-800 (optional)
