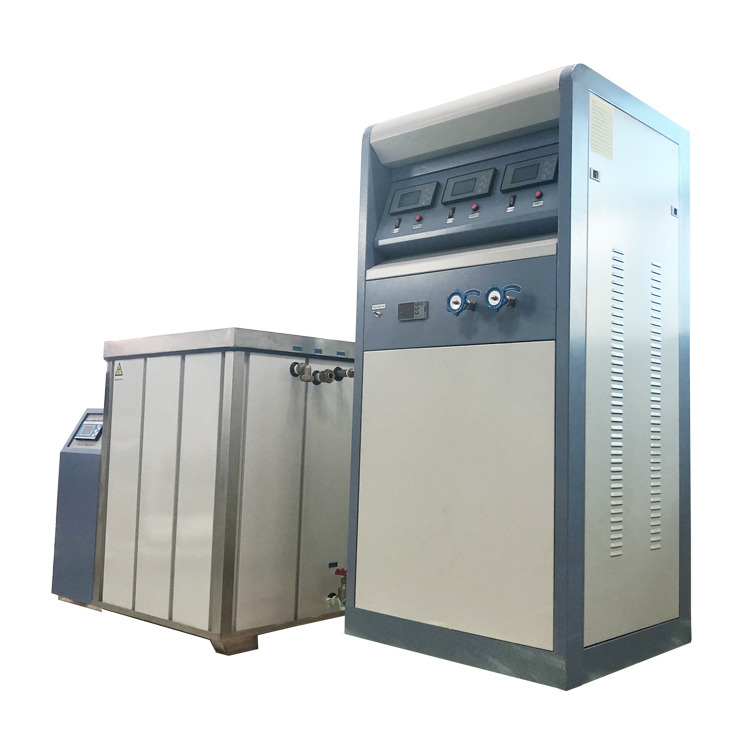

LIYI ODM OEM OBM PVC PE Plastic Tube Hydrostatic Pressure Test Equipment Hydrostatic Pressure Pipe Testing Machine
Plastic pvc pipe hydrostatic pressure testing machine is nice in appearance, smiple in structure and of high precision and stability as well as easy to operate, it is the it is the necessary testing machine for quality inspection department of kinds of research institutes and pipes manufacturers.
Accordant Standards: ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479 etc.
Performance Introduction:
1). Magnetic valve, each road has two branches. Thanks to advanced pressure method synchronize with Germany and Denmark, a pressure rise and supplement electric valve can respectively change operating frequency and time according to program and test, so that quick and accurate pressure supplement can be realized for large caliber PE sample. Thus the instrument can be widely used(r20—r630 PE pipe)and has high accuracy of pressure control(superior to±1%, maximum can reach ±0.001Mpa)
2). A set of water pressure station imported from Denmark is superior to homemade water pressure test pump and gas drive water pump(use gas to drive water) equipped by some manufactures which has large flow and good performance,as well as longer service life and low noise, and air pump is not required.
3). Plastic Pipe Hydrostatic Pressure Testing Machine Each road has a high precision sensor from the department of space guarantees 0.001Mpa resolution and highest press accuracy can reach set value±0.001Mpa.
4). Plastic Pipe Hydrostatic Pressure Testing Machine Each road also has many one-way pipe regulating vales.
5). Multiline digital display LCD screen,multi storage communication(include U disk storage) , more extensive protocol, so that it can communicate with PC, PLC, touch screen and many other display terminal.
|
pressure range of the main engine |
0~10MPa (adjust at random) |
|
control range of water box |
RT~95℃ |
|
pressure resolution of main engine |
0.001MPa |
|
temperature control accuracy of water box |
±0.5℃. |
|
constant pressure range of main engine |
<+2%,-1% of the set value |
|
temperature uniformity of the water box |
±0.5℃. |
|
constant pressure accuracy of main engine |
no lower than ±1% |
|
temperature resolution of water box |
0.1℃. |
|
timing range |
0~9999.59 hours |
|
timing accuracy |
≤0.1% |
|
insulating layer thickness of the water box |
thicker than 83mm,thinner than 95 mm |
|
test stations |
50 roads at most for single machine |
|
power supply of pressure control system |
AC220V,1.5kw |
|
power supply of temperature control system |
AC380V,18kw |
|
water box is equipped with short-circuit protection device, the material is stainless steel |
|
Pipe clamp:
Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
|
Accepted Delivery Terms: |
FOB, CFR, CIF, EXW, DDP |
|
Accepted Payment Currency: |
USD, EUR, HKD, CNY |
|
Accepted Payment Type: |
T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Nearest Port: |
Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process. After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
