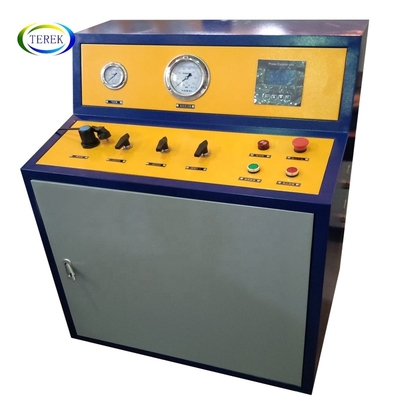

Leak test and high pressure filling hydrostatic pressure tester pump for pipeline leak test

The air tightness testing machine is widely used in various industries such as automobile cylinder, piston, petroleum, coal mine, rubber tube, pressure gauge, gas storage tank, etc

Air leak testing bench is such a device that uses compressed air as power source and gas booster pump as pressure source to get the corresponding pressurized gas pressure through regulating air drive pressure;
When air drive pressure and pressurized gas pressure reach balance, the booster pump will stop pressurizing, and output pressure will be stable at the preset pressure, so it has such features: explosion-proof, output pressure adjustable, small volume, light weight, easy to operate, reliable performance, wide application range etc.
Machine mainly includes one air driven gas booster, one buffer tank(10L), air pressure gauge, inlet pressure gauge, high pressure digital pressure gauge, air regulating valve, control valves, pipelines, cabinet etc.

Equipment component
Driven air pressure gauge: to display the drive air pressure
Gas inlet gauge: to display the gas inlet pressure
HP digital gauge: to display the high pressure outlet pressure, and the customers can set the outlet pressure value on the digital gauge.
Buffer tank: mainly to buffer the pipelines pressure, to ensure a stable outlet pressure
Nitrogen gas inlet: 3-8 bar, NPT1/4''
Drive air inlet: 3-8 bar, PT1/2''

 Compressed air to drive the charging machine to work - no electricity required (connect to normal air compressor)

1. In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
2. Core components: pressurize the gas through the gas booster pump to meet the test pressure requirements.
3. Pneumatic two-piece: filter and adjust the pressure of compressed air;
4. Easy to install, operate and maintain
5. Speed control valve: adjust the drive air flow to adjust the operating frequency of the supercharger to extend the service life of the supercharger;
6.No heat, flame or spark risk and explosion proof
7. Automatically pressure holding, whatever the cause of the pressure drop, the TEREK gas booster will automatically start.
8. High pressure limit valve: set the automatic stop and opening pressure of the supercharger to ensure that the supercharger can stop automatically at the set pressure.

 The testing machine is mainly used for air leak testing for pipe, tube, valve etc components. And the testing pressure is up to 60 bar.
The working medium can be nitrogen gas, argon gas etc.
Air tightness test bench is used in a variety of hose, metal pipe, all kinds of car line, condensers, heat exchanger and engineering machinery hydraulic hose, steel pipes, pressure vessels, cut-off valve, plug valve, check valve, ball valve, regulating valve, valve group, such as high pressure valves, oil machinery and instrument of the valve body strength test with high and low pressure water pressure test.

 Trade Assurance: (reassure your delivery time and the quality.)
1.As a member of alibaba, we gain the support form Alibaba depends on the good quality and reputation, such as “Trade Assurance”Trade Assurance is a free protection service for buyers.
2. Provides free consult services for customers, including requirement analysis and solution design.
3. We'd like to customize special machine according to customer’s request.
4. Working video of the machine will be sent to you accordingly to your need.
5. Operation manual will be provided after shipment.
6. We provide two year warranty.
7. Free wearing parts will be sent together with the machine .

Any more questions, please contact us, and welcome to add my skype or whatsapp for more details chat.
