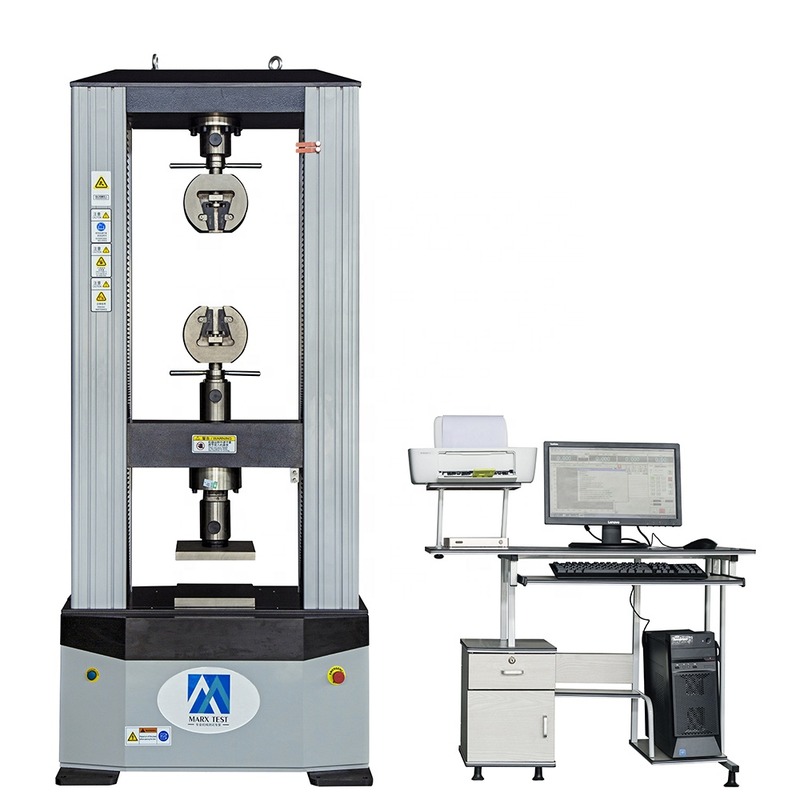

Computer Control Electronic Tensile Testing Machine Strength Tester Price WDW-300 300KN

Computer Control Electronic Tensile Testing Machine Strength Tester Price WDW-300 300KN
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
Product Description









Computerized Electronic Steel Bar Testing Machine Rebar Tensile Tester Price Double Test Spaces Testing Machine






1.Application Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.

 2.Features 1) Computer + Software control and display 6 kinds test curves: Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time 2) Can be installed extensometer to test deformation of rubber or metal material 3) Can do high temperature test by high temperature oven and furnace 4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures 5) Can be customized height, width, and follow any test standard or customer request 6) Also have Digital Display Type. 3.Technical Parameters
Model
WDW-200 WDW-300
Max. load force
200KN 300KN
Load accuracy
Class 1 (class 0.5 optional)
Load range
1%-100%FS (0.4%-100%FS optional)
Load resolution
1/300000
Crosshead Travel(mm)
1000(Can be Customized )
Effective tensile space (mm)
600(Can be Customized )
Effective Test width (mm)
600(Can be Customized )
Crossbeam travel speed(mm/min)
0.001-300
Round specimen clamping range(mm)
18-27, 27-36
Flat specimen clamping range(mm)
9-18, 18-27
Electronic Extensometer for metal material
YUU10/50 (optional)
Large deformation extensometer for rubber
DBX-800 (optional)
