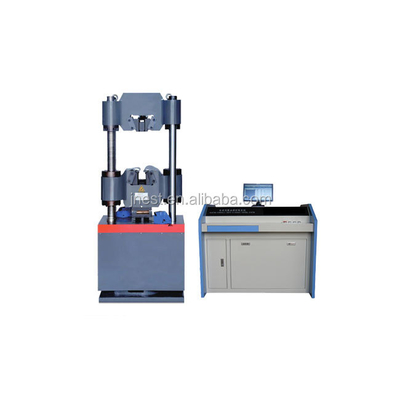

WAW series computerized electro-hydraulic servo hydraulic tensile testing machine/hydraulic utm 10t on to100 ton
Electro-hydraulic Servo Hydraulic Universal Tester is mainly used to do stretching, compression and bending testing for metal and nonmetals such as rebar,wire rope,anchor rod,bolt fastener,cable and so on.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.
Electro-hydraulic Servo type:this type could test tension, tensile strength, pressure, compression strength, shear force, stripping force, adhesive force, pulling force, tearing force, bending force, elongation rate, elastic modulus, yield strength and other parameters.Supporting open editing test parameters, steps and standards, open export import standards and procedures;open EXCEL report form;custom collation printing multiple items;test and analysis function;support hierarchical management of user management rights.
Technical Parameters
|
Parameters |
300KN |
600KN |
1000KN |
|
Maximum test force |
300KN |
600KN |
1000KN |
|
Measuring range |
1 or 0.5 grade |
||
|
Test force resolution |
0.01KN |
||
|
Test force indication relative error |
≤±1% |
||
|
Deformation precision |
±0.5%F.S |
||
|
Piston stroke |
250mm |
||
|
Piston max movement speed |
80mm/min |
||
|
Stretch space(mm) |
550 |
600 |
600 |
|
Compression space(mm) |
380 |
380 |
600 |
|
Clamping Method |
Manual/automatic clamping |
||
|
Round Sample Clamping Diameter(mm) |
φ6-26 |
φ13-40 |
φ13-50 |
|
Flat Sample Clamping thickness |
0-15mm |
||
|
Max Clamping width of flat sample(mm) |
70 |
75 |
75 |
|
Pressure Plate Size |
φ160(or 204*204) |
||
|
Max distance between bending fulcrum(mm) |
450 |
450 |
450 |
|
Stretch space two legs distance(mm) |
450 |
450 |
550 |
|
Oil pump motor power |
1.1Kw |
1.1Kw |
1.1Kw |
|
Net weight |
1900kg |
2100kg |
2600kg |
Features
Electro-hydraulic Servo Hydraulic Universal Tester is mainly used to do stretching, compression and bending testing for metal and nonmetals such as rebar,wire rope,anchor rod,bolt fastener,cable and so on.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.
Electro-hydraulic Servo type:this type could test tension, tensile strength, pressure, compression strength, shear force, stripping force, adhesive force, pulling force, tearing force, bending force, elongation rate, elastic modulus, yield strength and other parameters.Supporting open editing test parameters, steps and standards, open export import standards and procedures;open EXCEL report form;custom collation printing multiple items;test and analysis function;support hierarchical management of user management rights.
