Home /Products/Steel Tensile Testing Machine/Computer Control Material Universal Test Machine Tensile For Steel Rebar Rope

Computer Control Material Universal Test Machine Tensile For Steel Rebar Rope

1.0 Sets
MOQ
Computer Control Material Universal Test Machine Tensile For Steel Rebar Rope
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Customized Support: OEM, ODM
Model Number: HUD-B604B-S
Power: Electronic
Capacity: 5-2000kg
Load Cell Brand: Germany Brand TECSIS Load Cell
Motor: Panasonic Servo Motor
Load Accuracy: 0.5% F.S
Control System: PC
Vertical Test Space: 1200mm Including Fixture
Horizontal Test Space: ≤400mm
Basic Infomation
Model Number: HUD-B604B-S
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 100 Set/Sets per Month
Product Description

Product Description

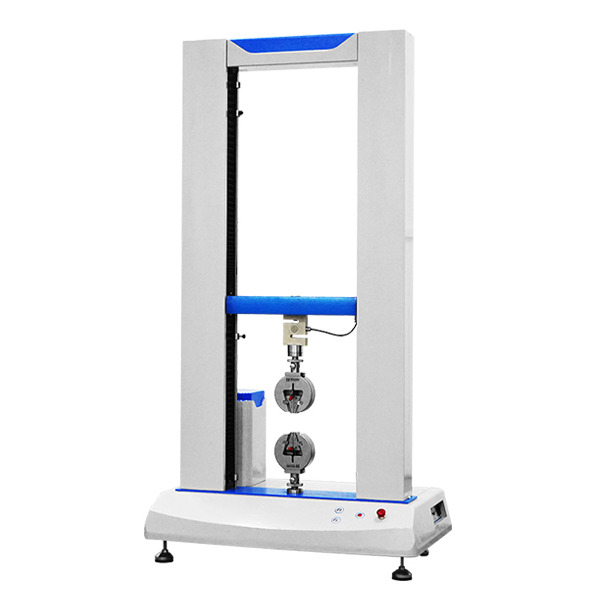

HUD-B604-S Computerized servo double column universal test machine, it is suitable for testing and analysis the mechanical properties of plastic film, composite film, flexible packaging material, adhesive tape, rubber, paper and other products, it can do tensile, peeling, tearing, bonding, compression, bending test and so on. And it also can test and analysis of compression,bending and other mechanical properties of containers such as corrugated cardboard boxes, honeycomb panels, flexible packaging bags, plastic barrels (edible oil, mineral water), paper barrels, paper cans, IBC barrels, and hollow containers.
Product Paramenters
No
Description
Parameters
1
Model
HUD-B604-S
2
Load capacity
5KN, 10KN, 20KN (optional )

Load cell brand
Germany brand TECSIS load cell

Motor
Panasonic servo motor

Driver
400w Panasonic driver

Screw
High precision ball screw

Control system
Computer control
3
Test speed
0.1-500mm/min(Adjustable)
4
Stroke
1200mm (Including clamp)
5
Load resolution
1/250,000
6
Load accuracy
≤0.5%
7
Unit
gf/kgf/N//kN/LBf/T
8
Dimension
(L*W*H)880*505*1470mm
9
Weight
90KG Approx
10
Power
1∮ AC 220V

Features

● A tester integrates multiple independent testing functions such as tensile, deformation, peeling, tearing, and compression, and provides a variety of test items for users to choose;
● Provide data analysis of constant tensile stress, elastic modulus, stress and strain;
● Double-pillar ball nut and screw drive to ensure high precision and smooth operation;
● The equipment adopts miniaturization and structural integration design, which can meet the test requirements of various occasions;
● 1~500mm/min stepless speed change, which provides convenience for users to test under different test conditions;
●Intelligent configuration such as multi-level limit protection, overload protection, automatic high-speed return, and fault
notification to ensure the user's operation safety;
● Embedded system and membrane key switch, which are convenient for users to conduct test operations quickly;
● The embedded control system effectively guarantees the security of the system and improves the reliability of data management and test operations;
● The system is equipped with 4 USB ports and 2 network ports to facilitate data transmission and external access of the system;
● Professional software provides statistical analysis of group test curve overlay analysis, maximum, minimum, average, and standard deviation.
